WarDragon Pro Kit v5 w/ Advanced Drone Detection
Description
WarDragon Pro (Coming Soon)
NEW SYSTEM COMING SOON – CONTACT US FOR MORE INFORMATION AND PRE-ORDERS
WarDragon Pro is a compact, headless, SDR-based drone detection, RF sensing, and data integration platform built on DragonOS.
It is designed as a purpose-built sensing appliance rather than a general-purpose PC, combining dedicated radios, GPS,
and engineered software workflows into a unified, portable system.
WarDragon Pro bridges RF sensing, drone detection, and real-time data integration, enabling it to function both as a standalone
detection system and as an edge sensor node within larger situational awareness architectures.
Remote ID, DJI DroneID, and RF Detection
WarDragon Pro is designed to provide broad drone detection coverage across standard Remote ID methods while extending beyond
Remote ID alone through SDR-based signal analysis.
- Bluetooth 5 Long Range (LR) Remote ID Detection: Supports extended-range Bluetooth Remote ID transmissions beyond standard advertising-based receivers.
- Wi-Fi Remote ID (2.4 GHz and 5 GHz): Dual-band coverage for Wi-Fi-based Remote ID beacon detection.
- DJI DroneID Detection: SDR-based detection and analysis of proprietary DroneID-related signals not broadcast as standard Remote ID.
High-Performance SDR and Spectrum Awareness
At the core of WarDragon Pro is a high-performance, general-purpose software-defined radio capable of monitoring RF activity
from approximately 70 MHz to 6 GHz.
- Wideband spectrum monitoring and analysis
- Detection and decoding of DJI DroneID for Ocusync 2 and most Ocusync 3 links
- Detection of Ocusync 4 activity, with optional enhanced decoding support available through DragonScope services
- General-purpose SDR experimentation, signal analysis, and research workflows
Depending on the selected kit variant and active workflows, the internal SDR may be reassigned to additional sensing tasks such as
ADS-B aircraft detection. Enhanced parallel workflows may require the addition of a second SDR. Multiple WarDragon Pro variants
are planned to support different mission sets, hardware configurations, and expansion paths.
FPV Analog Drone Detection and Model-Enhanced Workflows
WarDragon Pro is actively expanding to include analog FPV drone detection and model-enhanced RF analysis workflows.
These capabilities leverage digital signal processing and trained models to improve detection confidence, classification,
and signal understanding beyond simple energy-based methods.
Some advanced FPV and model-assisted detection workflows may require additional hardware resources, including a second SDR,
depending on the selected configuration.
TAK and Situational Awareness Integration
WarDragon Pro integrates with the TAK ecosystem, including ATAK, iTAK, WinTAK, and TAK Server, using Cursor-on-Target (CoT).
- Drone detections and Remote ID telemetry
- ADS-B aircraft tracks
- KrakenSDR lines of bearing (with external KrakenSDR)
- Kismet wireless detections
- System GPS position and sensor metadata
WarDragon ATAK Plugin
The WarDragon ATAK Plugin is available as a companion capability, providing a native interface within ATAK for monitoring
system status, detections, and sensor data while aligning with TAK-native workflows.
- Native ATAK UI integration
- Visualization of drone detections and Remote ID telemetry
- System status and GPS awareness
- CoT-aware workflows aligned with TAK best practices
Data Integration, Automation, and Sensor Fusion
WarDragon Pro is designed not only to detect RF activity, but to ingest, normalize, correlate, and distribute sensor data
across multiple systems and workflows.
- MQTT Support: Publish RF, drone, and system events to dashboards, alerting systems, and automation pipelines.
- Kismet API Ingestion: Correlate Wi-Fi and Bluetooth detections with SDR-based observations.
- Identifier-Based Correlation: Filter and match detections using Remote ID fields, protocol behavior, frequency, and signal characteristics.
- Integration with External Platforms: Designed to function as an edge RF sensor within larger systems, including integration paths into TAK, Anduril Lattice, and other situational awareness platforms.
- Civilian and Infrastructure Integration: Supports integration with Home Assistant and similar systems via MQTT or API-based workflows for alerting, logging, and visualization.
Extensible by Design
WarDragon Pro is not locked to a fixed configuration and can be expanded based on mission or infrastructure requirements.
- External KrakenSDR for direction finding and geolocation
- Additional SDRs for parallel RF workflows
- Dedicated ADS-B receivers where required
- Variant-based configurations for expanded sensing capability

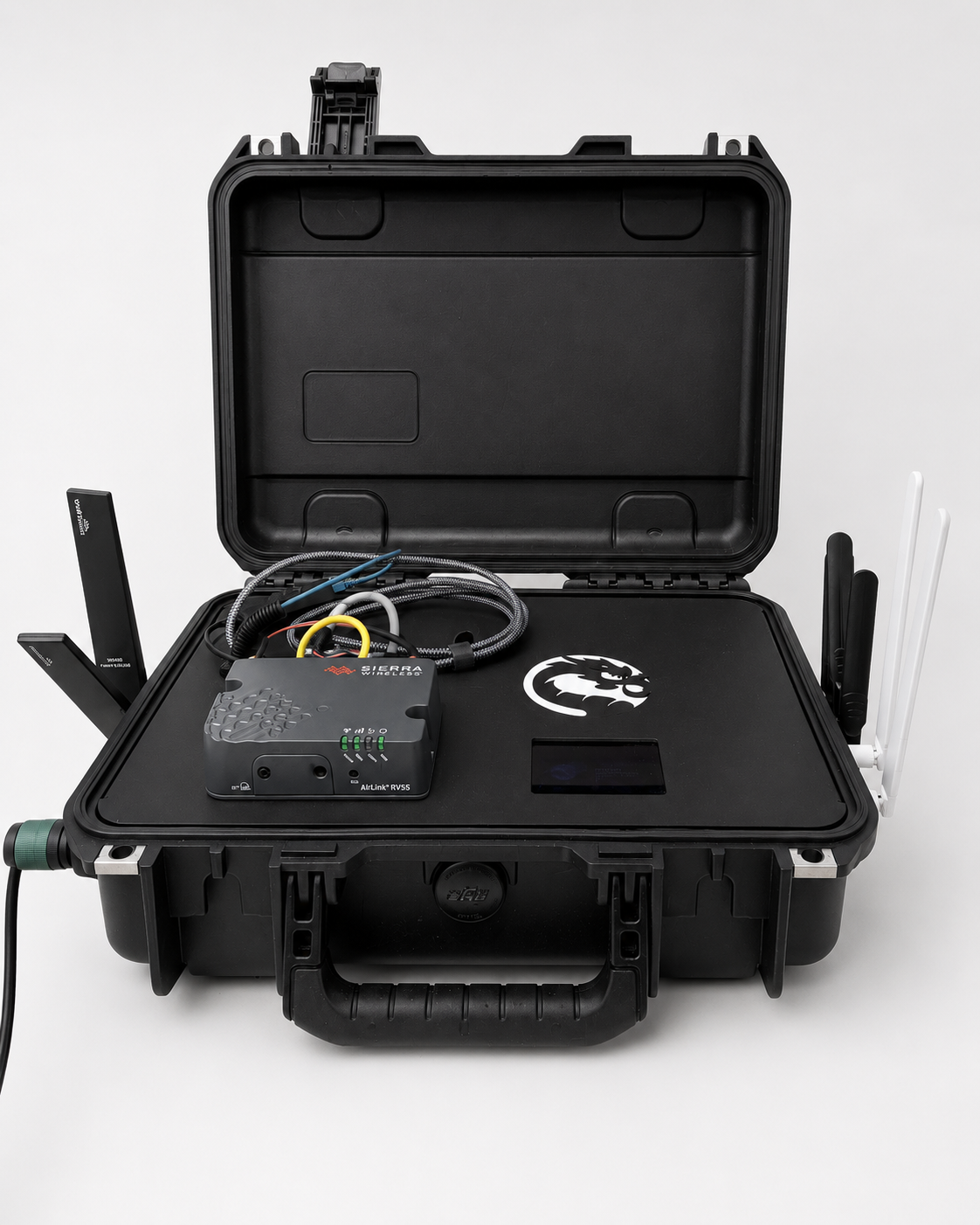

System Architecture and Hardware
WarDragon Pro combines purpose-selected compute, software-defined radio capability, wireless interfaces,
and integrated power and thermal management into a unified, field-ready system designed for continuous RF sensing.
- Integrated compute platform optimized for SDR workloads
- High-performance SDR covering approximately 70 MHz to 6 GHz
- Dedicated Wi-Fi and Bluetooth interfaces for Remote ID detection
- Integrated GPS module with internal or external antenna support
- USB expansion and internal device integration
- Active cooling and power management for sustained operation
- Machined base plate and ruggedized enclosure

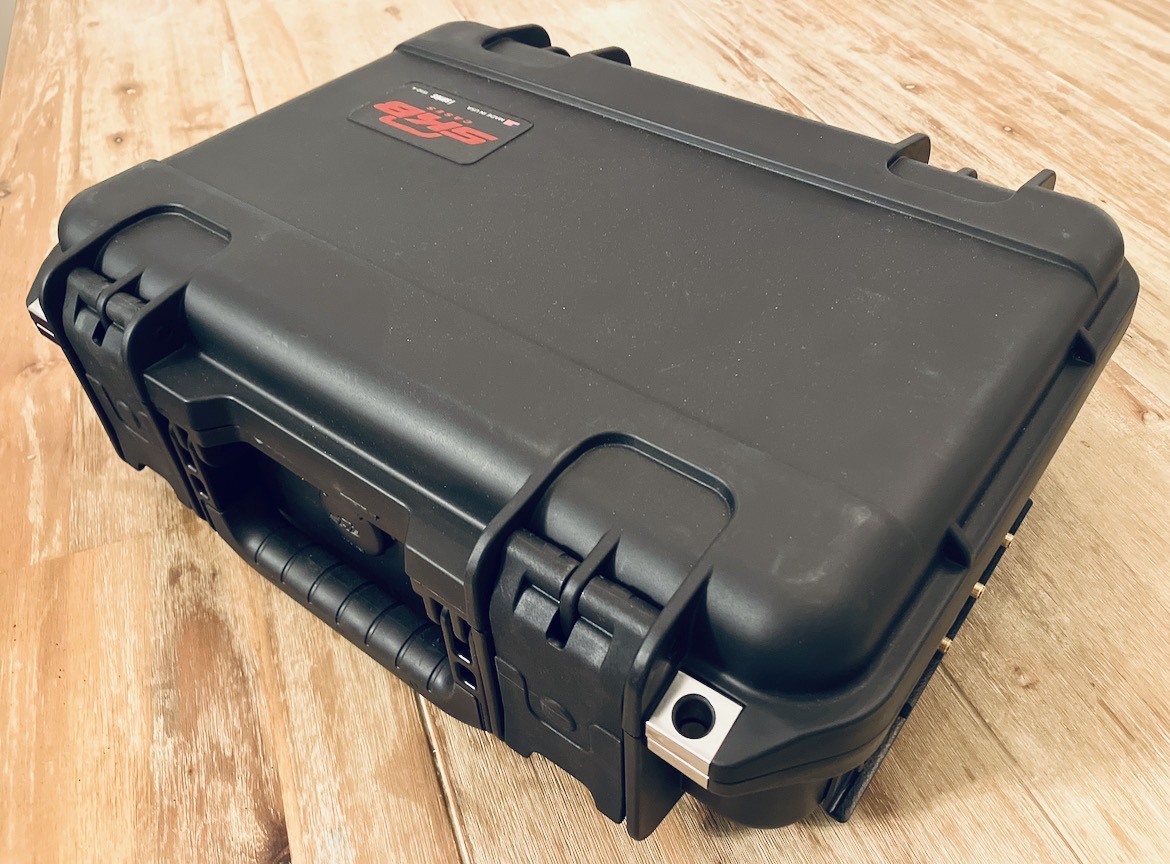

- Protective transport case
WarDragon Pro is designed for headless operation and supports SSH and remote desktop access after initial setup.
Software and Ecosystem
- DragonOS pre-installed and configured
- DragonSync workflows for RF data handling and distribution
- Ongoing ecosystem expansion and workflow integration
WarDragon Pro is supported by documentation, educational resources, and the broader DragonOS ecosystem.
Shipping and Availability
- Pre-order and direct inquiry system
- Shipping not included
- United States shipping only (Contact for OCONUS shipping)
- Lead times and configuration options provided via direct contact
Contact us for pre-orders, configuration options, and upcoming variant availability.
