Description

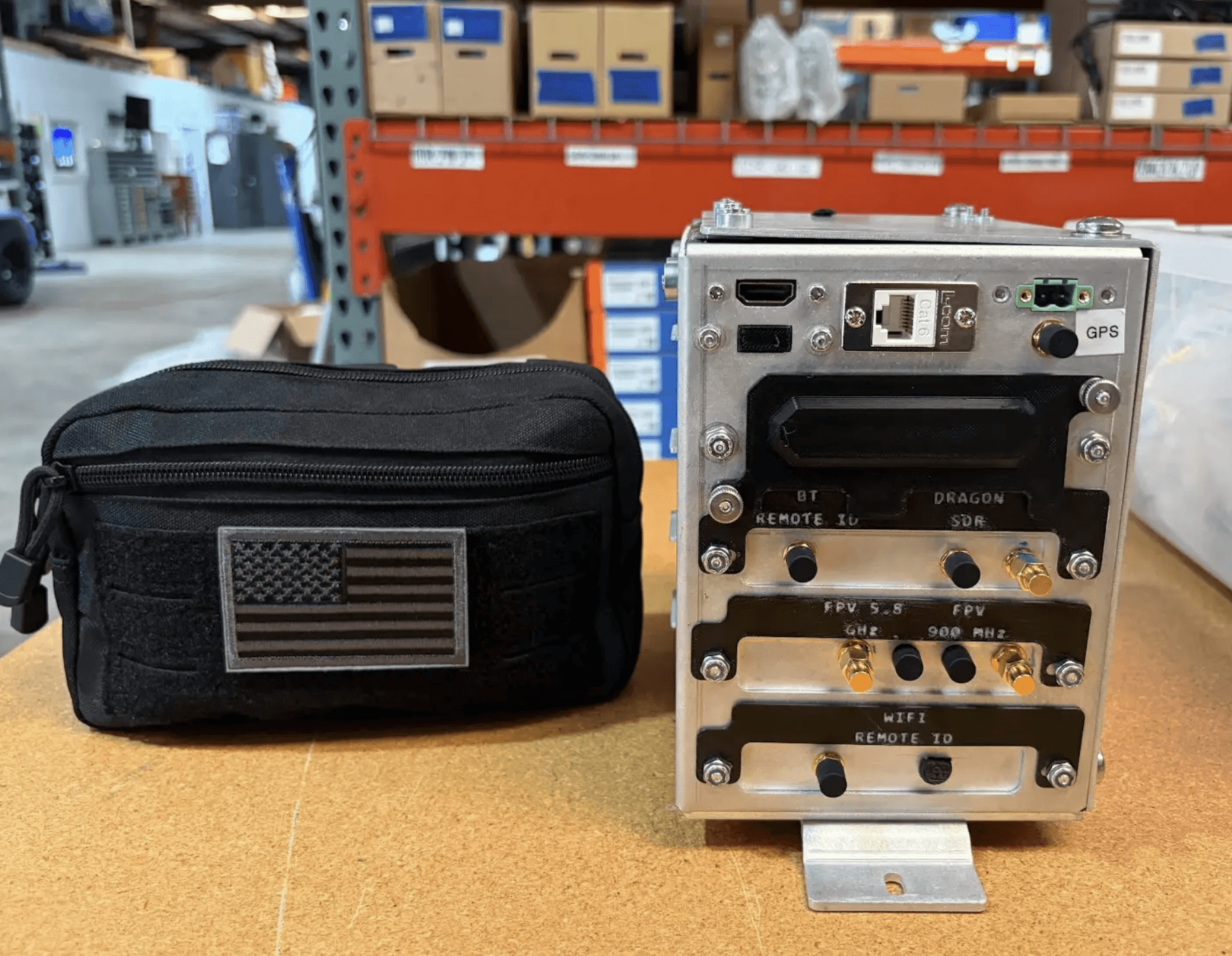

WarDragon Pro Drop-In Kit is an embedded passive RF sensor for fixed sites and distributed arrays. It monitors the airspace above the site, identifies drone communications across supported protocols, and publishes detections as CoT to an operating picture or a customer-selected endpoint. The enclosure installs inside infrastructure already at the site — CCTV and LPR cabinets, pole boxes, rooftop housings, and surveillance trailers — and runs continuously with nobody present.
Detection runs on the device and is included permanently. No subscription, cloud connection, or vendor platform is required for the system to operate, and software releases extending protocol coverage are available to kits already in the field on request.
Intended for integrators, critical infrastructure operators, facilities and campuses, public safety installations, surveillance trailer and CCTV operators, and multi-node array deployments.
Detection coverage
| Signal | Band | Coverage |
|---|---|---|
| Remote ID, Wi-Fi | 2.4 / 5 GHz | Detect and decode |
| Remote ID, Bluetooth | 2.4 GHz | Detect and decode |
| DJI OcuSync 2 / 3 | 2.4 / 5.8 GHz | Detect and decode |
| DJI OcuSync 4 | 2.4 / 5.8 GHz | Detect and correlate per flight; decode with DragonScope |
| Analog FPV video | 5 GHz race bands | Elite kits only; requires the second SDR |
| Telemetry and control links | 900 MHz and multi-band | Elite kits only; requires the second SDR |
DJI aircraft are identified through OcuSync activity even where Remote ID is absent or disabled.
Standard antenna configurations detect a wide range of drone signals at estimated distances of up to 5 km. High-gain configurations extend detection beyond 10 km under favorable conditions. These are estimates rather than specifications: RF environment, antenna height, line of sight, and aircraft type all materially affect what a given installation achieves. They are not a guarantee of performance at any site. The kit ships with a paddle antenna set; site-specific antennas are quoted per deployment.
Data output
Detections are published as CoT, the message format used by TAK and TAK-compatible systems. The kit is software agnostic and requires no proprietary display layer.
| Destination | Detail |
|---|---|
| Local, standalone | Operates with no network and no subscription |
| ATAK / TAK | CoT to a TAK-compatible operating picture |
| WarDragon Analytics | One node or an array to a central map and dashboard |
| 4DV Analytics | Detection events forwarded where configured |
| Customer endpoint | Existing middleware, analytics platform, or command-center ingestion |
The kit accepts a wired or cellular network connection. Carrier and site network service are provided by the customer.
System and deployment
| Component | Detail |
|---|---|
| Processor | WarDragon ARM, DragonOS preloaded |
| Radios | WarDragon SDR; dual-band Wi-Fi adapter; Bluetooth 5 Long Range adapter |
| Antennas | Standard paddle set, external SMA connections |
| Power | 12V / 24V DC input |
| Network | DHCP WAN connection |
| Mounting | DIN-rail clip, 6-inch DIN-rail strip and mounting hardware supplied |
| Enclosure | Compact metal enclosure for installation inside existing weatherproof systems |
Options
| Option | Detail |
|---|---|
| DragonScope Drone ID Service | Decodes encrypted DJI identification including OcuSync 4, for serial-number attribution, pilot location, and takeoff point. Annual, licensed per sensor. Internet connectivity required for O4 telemetry. |
| Cellular WAN upgrade | Router for cellular connectivity. Carrier service, SIM, and data plan not included. |
| Antenna packages | Omnidirectional and directional options to extend, shape, or sector coverage around facilities, rooflines, poles, trailers, towers, and perimeters. Quoted per deployment. |
| Multi-Antenna Mount | Pole-mounted platform carrying one to six antennas with quick-release mounting. |
| Rapid Deployment Kit | Converts the Drop-In Kit into a standalone outdoor system with weatherproof housing, tripod, travel case, and field power and network interfaces. Quoted per deployment. |
| Integration support | Configuration for ATAK, 4DV Analytics, WarDragon Analytics, or a customer endpoint. Quoted per deployment. |
Kit selection
Pro and Elite differ in radio count and concurrent processing capacity. Pro runs ARM processing with a single software-defined radio. Elite adds x86 processing and a second SDR, extending coverage to analog FPV video and long-range telemetry and control links. The second radio is fitted at manufacture and is not a field upgrade. Software releases extend protocol coverage; FPV and telemetry coverage requires the Elite second radio.
Mobile and Drop-In differ in deployment method. Mobile ships in a hardened carry case and requires no site installation. Drop-In is a DIN-rail enclosure for installation inside existing infrastructure and continuous unattended operation. Both run the same platform, and coverage area is extended by antenna selection and by adding nodes that aggregate into a single operating picture.
For FPV and telemetry coverage in this form factor, see the WarDragon Elite Drop-In Kit.
GSA Schedule. Available on GSA Multiple Award Schedule under contract GS-07F-0031W, held by Millenium Products, Inc. Schedule orders are not placed through this site and schedule pricing differs from the list price shown above — contact us for a schedule quote.
Detection performance varies by RF environment, antenna placement and height, aircraft type, protocol behavior, line of sight, and deployment configuration. Documentation and setup guides are published on the support page. Use of WarDragon kits and the DragonScope service is subject to our terms.
